Occupancy Reward Shaping: Improving Credit Assignment for Offline Goal-Conditioned RL

ORS learns the occupancy measure (distribution of future states) and extracts goal-reaching information into a reward function such that states with future states closer to goal have higher rewards.

1. Learning the Occupancy Model
   • The discounted occupancy measure \(d^\pi(s^+ \mid s, a)\) aggregates future states reachable from \((s,a)\) under policy \(\pi\), weighted by temporal distance: \[ d^\pi(s^+ \mid s, a) = (1 - \gamma) \sum_{\Delta t=1}^{\infty} \gamma^{\Delta t - 1} \mathbb{P}(s_{t + \Delta t} = s^+ \mid s, a, \pi) \]
   • Analogous to SARSA bootstrapping \(Q(s,a) = r(s,a,s') + \gamma Q(s',a')\), we bootstrap occupancy learning over offline data \(\mathcal{D}\): \[ d_\theta^{\pi_\mathcal{D}}(s^+ \mid s, a) = (1-\gamma)\, p(s' \mid s, a) + \gamma\, d_{\theta^-}^{\pi_\mathcal{D}}(s^+ \mid s', a'); \quad \forall (s, a, s', a') \in \mathcal{D} \]
   • We parameterize the occupancy model using flow matching [Farebrother et al., 2025], learning a velocity field \(v_\theta(t, s, a, x_t)\) with loss \(\mathcal{L}_{\text{flow}}(\theta) = (1-\gamma)\mathcal{L}_{\text{next}} + \gamma \mathcal{L}_{\text{future}}\), where \(\mathcal{L}_{\text{next}}\) matches the immediate next state and \(\mathcal{L}_{\text{future}}\) bootstraps long-horizon occupancy with a target network.
2. Extracting Goal-Reaching Information (Without Solving an ODE)
   • States closer to goal \(g\) occupy inner level-set layers around \(g\), while distant states lie in outer layers. The \(W_2^2\) distance grows monotonically with distance to goal — making it a natural dense credit signal.
   • The flow-matching loss provides a tractable upper bound on \(W_2^2\) [Haviv et al., 2025; Lv et al., 2025; Park et al., 2025], computable without ODE integration: \[ W_2^2(\delta_g, d^{\pi_\mathcal{D}}(s^+ \mid s, a)) \leq \mathbb{E}_{\substack{x_1 = g,\, x_0 \sim \mathcal{N}(0, I) \\ t \sim \mathcal{U}(0,1)}} \left[\| v_\theta(t, s, a, x_t) - (x_1 - x_0) \|_2^2 \right] \]
   • The ORS reward \(r^W(s,a,g)\) is learned by regressing this flow-matching loss: \[ \mathcal{L}_{\text{rew}}(\psi) = \mathbb{E}_{s,a,g \sim \mathcal{D}} \left\| r^W_\psi(s,a,g) + \mathbb{E}_{\substack{x_1=g,\, x_0 \sim \mathcal{N}(0,I) \\ t \sim \mathcal{U}([0,1])}} \|v_\theta(t,s,a,x_t) - (x_1-x_0)\|_2^2 \right\|_2^2 \]
3. Use for Downstream GCRL: The ORS rewards are used to train policies for any downstream goal-reaching task, agnostic of the RL algorithm.

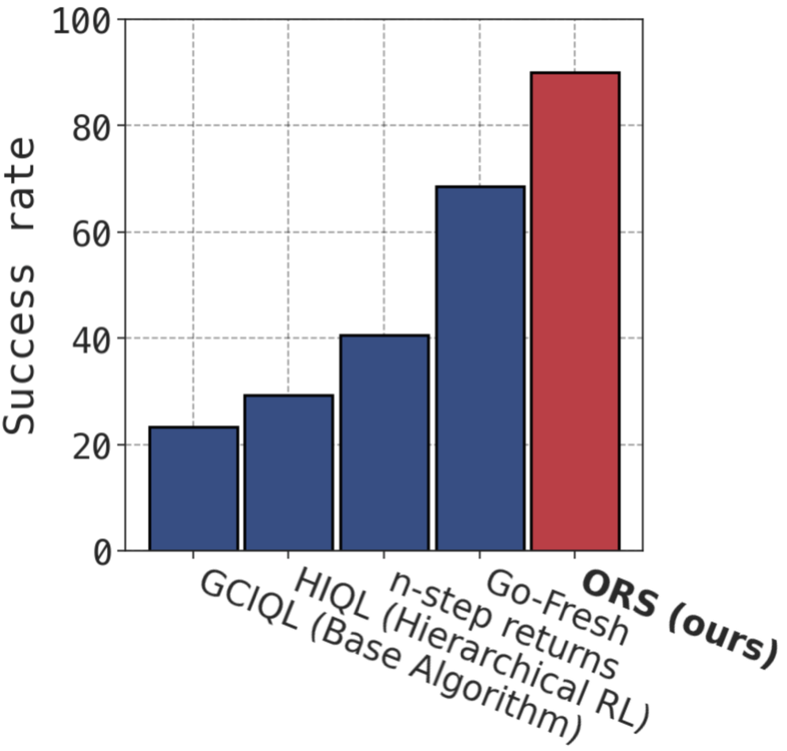

We evaluate ORS on 13 sparse-reward tasks of varying dataset quality and task complexity from 4 categories of OGBench datasets — antmaze, cube, scene and puzzle.

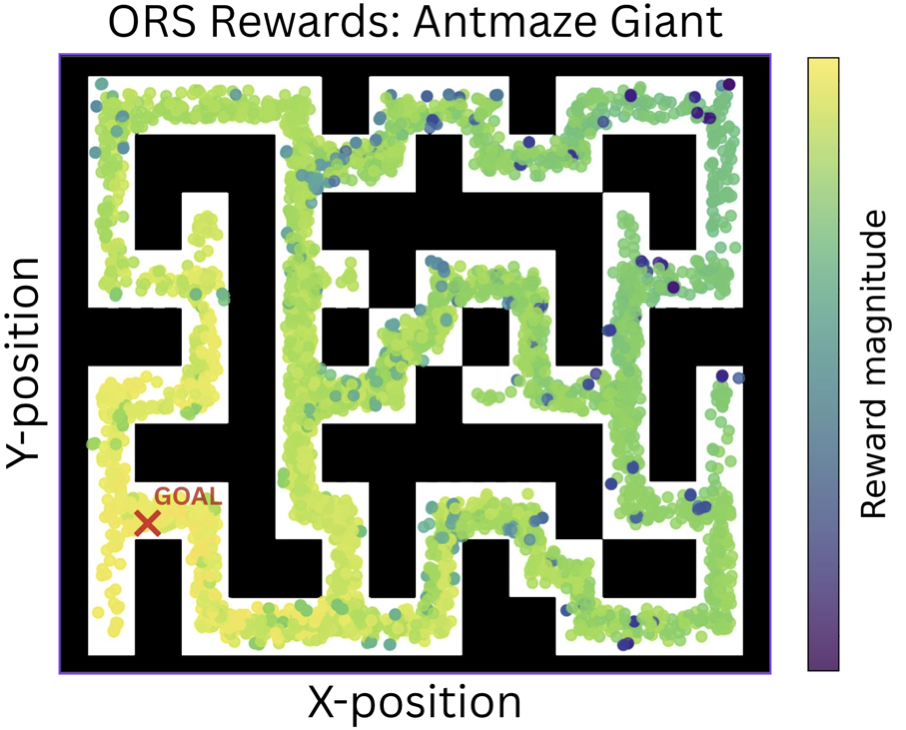

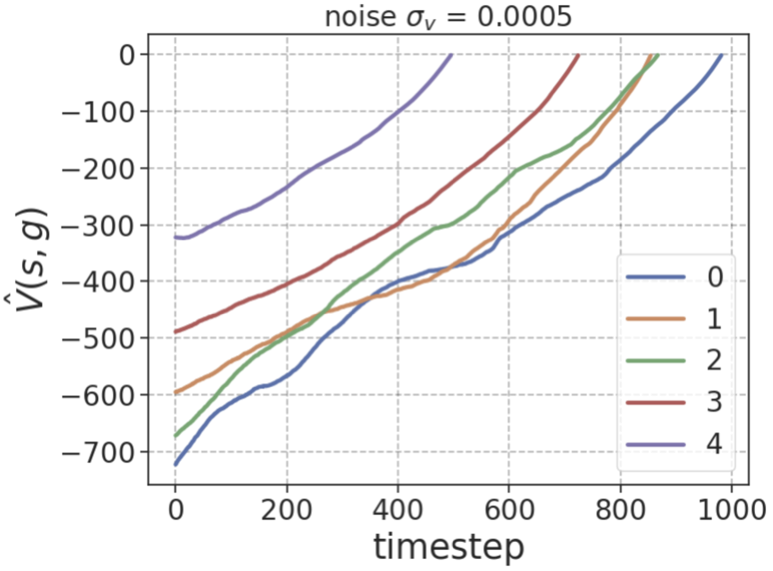

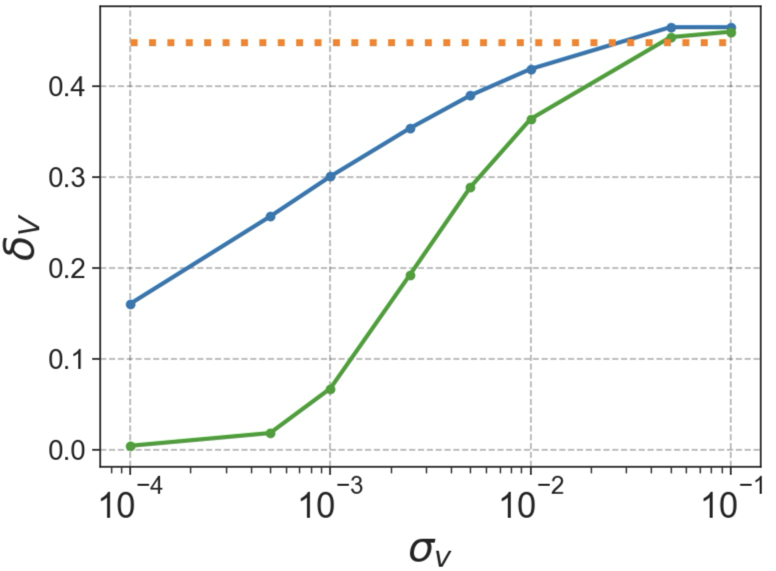

Left: ORS leads to lower average value non-monotonicity \(\delta_V\) at lower noise levels \((\sigma_v)\) over expert trajectories compared to sparse rewards or using \(\hat{V}(s,g) = r_W(s,g)\) directly. Center: ORS induces less noisy estimates of \(\hat{V}(s,g)\) over expert trajectories even for long horizons. Right: ORS rewards over 5000 state-action pairs for a single fixed goal smoothly decay in magnitude with temporal distance from goal. All plots computed over antmaze-giant-navigate.

If you find this work useful, please cite:

@inproceedings{venugopal2026ors,
  title     = {Occupancy Reward Shaping: Improving Credit Assignment
               for Offline Goal-Conditioned RL},
  author    = {Aravind Venugopal and Jiayu Chen and Xudong Wu and
               Chongyi Zheng and Benjamin Eysenbach and Jeff Schneider},
  booktitle = {International Conference on Learning Representations},
  year      = {2026},
  url       = {https://openreview.net/forum?id=EW8DskWQ1K}
}
